For model S1295U Color 52469, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1973/1974 Category: Television Receiver (TV) or Monitor
Valves / Tubes 2: A66-140X ZM1332
Semiconductors (the count is only for transistors) 91:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: S1295U Color 52469 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 770 x 910 x 490 mm / 30.3 x 35.8 x 19.3 inch
Notes 3 Thyristoren, 32 ICs. VHF Bd.I, Bd. III. UHF Kanal 21-60, Ultraschall-Fernbedienung mit 9 Funktionen.
Net weight (2.2 lb = 1 kg) 55 kg / 121 lb 2.3 oz (121.145 lb)
Source of data Handbuch VDRG 1973/1974

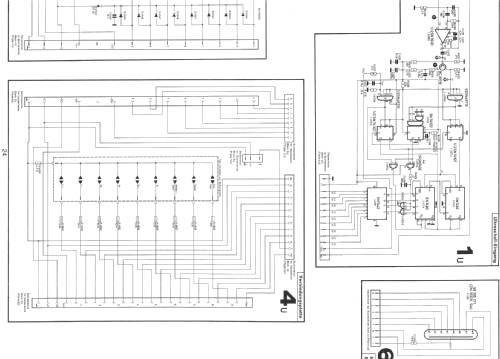

Literature/Schematics (1) Loewe Opta Farbfernseh-Schaltungen 1972-1975

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
