• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1965–1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 26042

• • alternative name: Löwe Radio

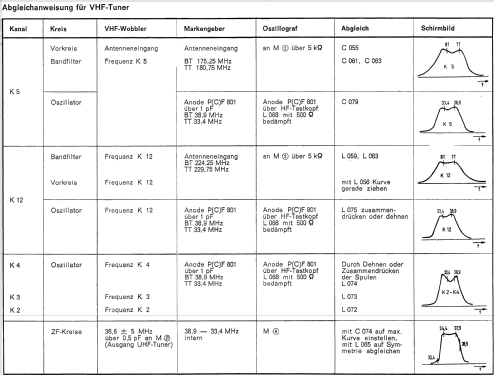

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• A65-11W

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stadion 63 173 - Loewe-Opta; Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 865 x 950 x 455 mm / 34.1 x 37.4 x 17.9 inch

• Notes
• VHF/UHF. Technische Daten wie Aristokrat 63073, jedoch Standgerät mit verschließbarer Jalousie.

• Net weight (2.2 lb = 1 kg)
• 49 kg / 107 lb 14.9 oz (107.93 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966
