For model T85 52216, Loewe-(Opta); Deutschland:

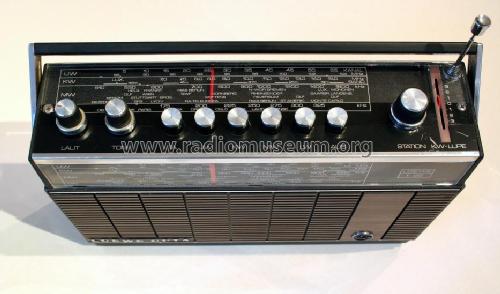

Loewe-Opta T85, Front

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1972/1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BF314 BF194 BF194 TBA570 TBA480 TBA641 AC187 BZX79 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.6 W (unknown quality)
from Radiomuseum.org Model: T85 52216 - Loewe-Opta; Deutschland
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 185 x 75 mm / 11.2 x 7.3 x 3 inch
Notes UKW: 87,5 - 104 MHz
KW: 5850 - 15600 kHz
MW: 513 - 1620 kHz
LW: 147 - 350 kHz
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
External source of data Erb
Source of data Handbuch VDRG 1972/1973
Mentioned in -- Original-techn. papers.
