• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1974/1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 218203

• • alternative name: Löwe Radio

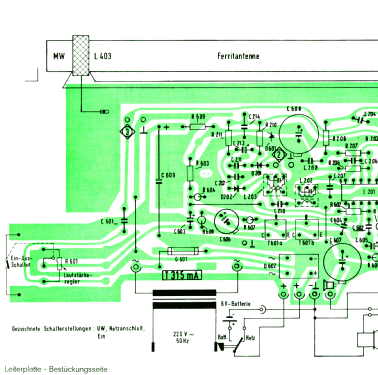

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T91 53219 - Loewe-Opta; Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 140 x 60 mm / 10.2 x 5.5 x 2.4 inch

• Notes
• UKW: 87,5 - 104 MHz
  MW: 513 - 1620 kHz
  LW: 147 - 350 kHz
  AFC on FM (UKW) effective, permanently installed, non-disabled. Sockets for electric power, headphone / external speaker.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Author
• Model page created by Felice Nicolini. See "Data change" for further contributors.
