T93 53224

T93 53224; Loewe-Opta; (ID = 341155) Radio

T93 53224; Loewe-Opta; (ID = 341156) Radio

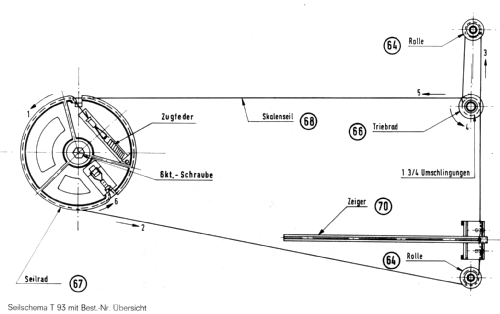

T93 53224; Loewe-Opta; (ID = 341157) Radio

T93 53224; Loewe-Opta; (ID = 341160) Radio

T93 53224; Loewe-Opta; (ID = 341158) Radio
T93 53224; Loewe-Opta; (ID = 2351318) Radio T93 53224; Loewe-Opta; (ID = 2351320) Radio
T93 53224; Loewe-Opta; (ID = 2351321) Radio T93 53224; Loewe-Opta; (ID = 97628) Radio

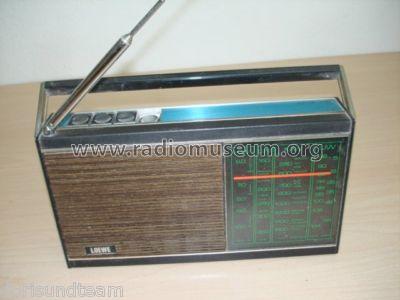

T93 53224; Loewe-Opta; (ID = 589359) Radio
Use red slider bar for more.
T93 53224; Loewe-Opta; (ID = 2351318) Radio
Loewe-Opta;: T93 53224 [Radio] ID = 2351318 1024x738
Select picture or schematic to display from thumbnails on the right and click for download.
For model T93 53224, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1974/1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BF314 BF254 AC187 AC188 TBA570 AA119 AA119 Si-Br-Gl
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: T93 53224 - Loewe-Opta; Deutschland
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 140 x 60 mm / 10.2 x 5.5 x 2.4 inch
Notes UKW: 87,5 - 104 MHz
KW: 5880 - 10200 kHz
MW: 513 - 1620 kHz
LW: 147 - 350 kHz
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
External source of data Erb
Source of data Katalog RFP 1974
Literature/Schematics (1) -- Original-techn. papers.
