For model T97 53226, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1974/1975 Category: Broadcast Receiver - or past WW2 Tuner

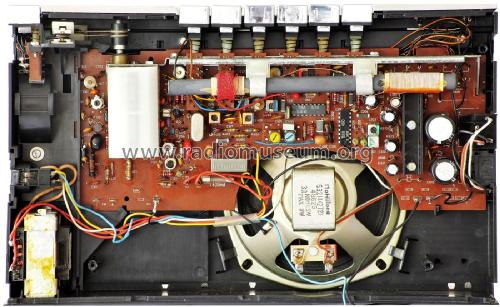

Semiconductors (the count is only for transistors) 4: BF314 BF254 BF194 AC187 TBA480 TBA570 TBA641
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

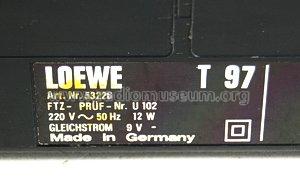

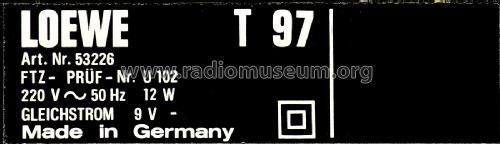

Power type and voltage Line / Batteries (any type) / 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: T97 53226 - Loewe-Opta; Deutschland
Material Plastics (no bakelite or catalin)

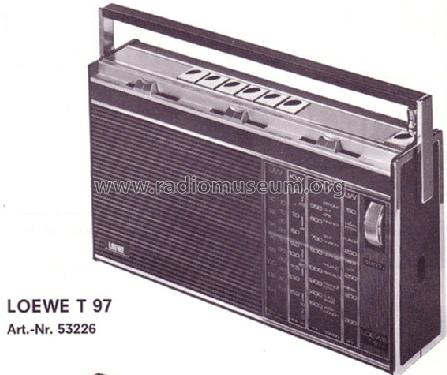

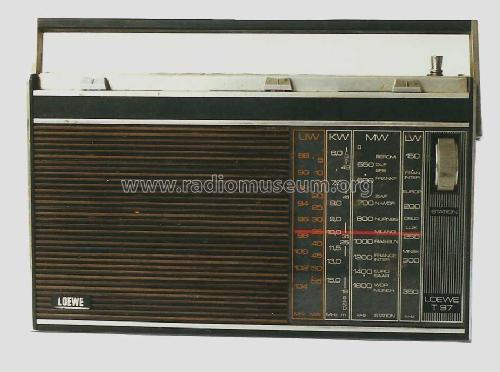

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 180 x 80 mm / 12.2 x 7.1 x 3.1 inch

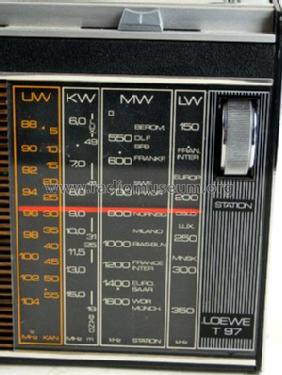

Notes UKW: 87,5 - 104 MHz
KW: 5850 - 16000 kHz
MW: 513 - 1605 kHz
LW: 145 - 350 kHz

NF-Ausgangsleistung bei Netzbetrieb: 4 W.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
External source of data Erb
Source of data Katalog RFP 1974

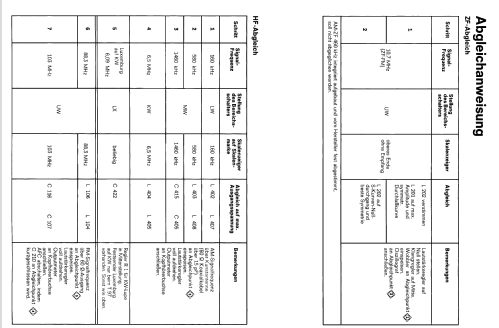

Literature/Schematics (1) -- Original-techn. papers.
