TC 424; Loewe-Opta; (ID = 1709645) Radio

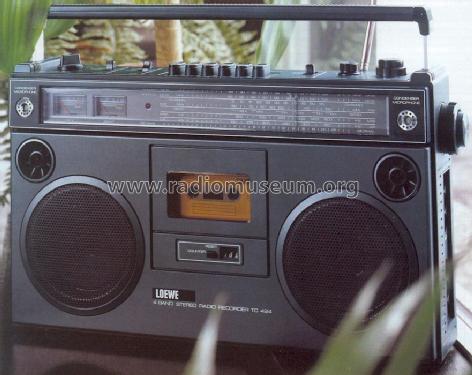

Loewe-Opta;: TC 424 [Radio] ID = 1709645 933x552
Select picture or schematic to display from thumbnails on the right and click for download.
For model TC 424, Loewe-(Opta); Deutschland:
Gerät spielt im Feuerwehrmuseum Soest.

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1979/1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220/ 6 x 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: TC 424 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 465 x 290 x 105 mm / 18.3 x 11.4 x 4.1 inch
Notes Loewe TC 424 4 Band Stereo Radio Cassetten Recorder;
UKW: bis 104 MHz, KW: 6 - 18 MHz, LW: 150 - 350 kHz,
Baß-, Höhen & Balance Regelung, Stereo Raumklang, Stereo LED, 2 Anzeigeinstrumente für Pegel, Abstimmung und Batt., Bandzählwerk, 2 x Kondensatormikrofone, Fe/Cr/FeCr Bandsortenwahl, Auto-Stop, 2 x 2.5 W Musik, Anschluß für ext. Lautsprecher, Mikrofone, Plattenspieler, Tonband, Kopfhörer, Koax Außenantenne & 9 V Netzteil, Ausführung schwarz und braun bekannt.
Mentioned in -- Original prospect or advert (Loewe (Ger) 1979/80)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1582 models, 1312 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
