Netzanode WR3

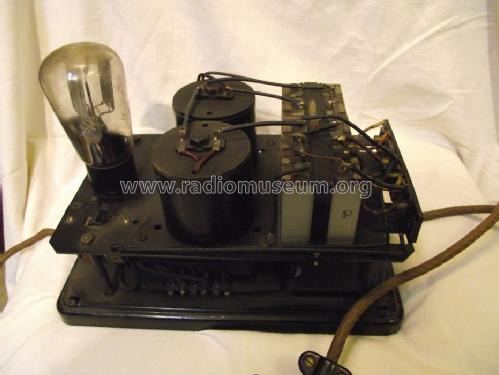

Netzanode WR3; Loewe-Opta; (ID = 1197271) Power-S Netzanode WR3; Loewe-Opta; (ID = 1197272) Power-S
Netzanode WR3; Loewe-Opta; (ID = 1197274) Power-S Netzanode WR3; Loewe-Opta; (ID = 1197276) Power-S
Netzanode WR3; Loewe-Opta; (ID = 1886745) Power-S
Use red slider bar for more.
Netzanode WR3; Loewe-Opta; (ID = 1197271) Power-S
Loewe-Opta;: Netzanode WR3 [Power-S] ID = 1197271 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Netzanode WR3, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1929–1931 Category: Power supply/conditioner or battery or charger
Valves / Tubes 1: 2NG
Wave bands - without
Details Power: B-Battery Eliminator
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Netzanode WR3 - Loewe-Opta; Deutschland
Material TUBES VISIBLE, material not known.
Shape Tablemodel, with any shape - general.
Notes Netzanode mit 4 Spannungen für Fernempfänger.
Price in first year of sale 80.00 RM
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in A. Stark, Preisliste 1929
