Zweiband-Recorder TC79 51206

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340458) Radio

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340459) Radio

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340461) Radio

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340462) Radio

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340465) Radio

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340466) Radio

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340467) Radio

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340469) Radio

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 340471) Radio
Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 94460) Radio Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 1755680) Radio
Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 1924962) Radio Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 1924963) Radio
Use red slider bar for more.

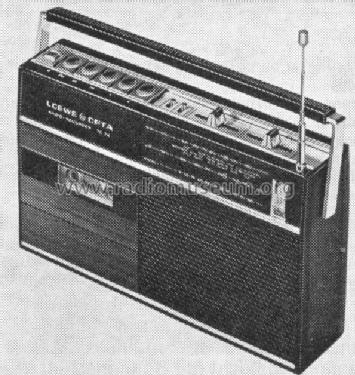

Zweiband-Recorder TC79 51206; Loewe-Opta; (ID = 94460) Radio
Loewe-Opta;: Zweiband-Recorder TC79 51206 [Radio] ID = 94460 595x628
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zweiband-Recorder TC79 51206, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1972–1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / C: 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Zweiband-Recorder TC79 51206 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 297 x 177 x 70 mm / 11.7 x 7 x 2.8 inch
Notes Aussteuerungsautomatik für Aufnahme; Übertragungsbereich des Cassetten-Recorders: 100-10000 Hz.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Price in first year of sale 279.00 DM
External source of data Erb
Source of data Handbuch VDRG 1972/1973
