• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163717

• • Brand: SEL

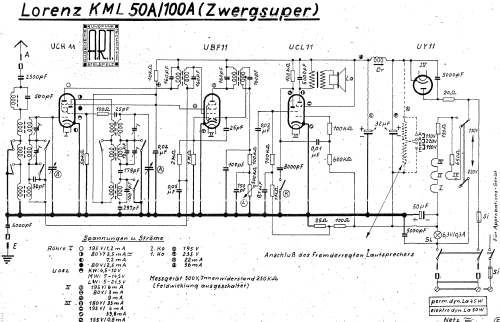

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UCL11 UY11

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-130; 220-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

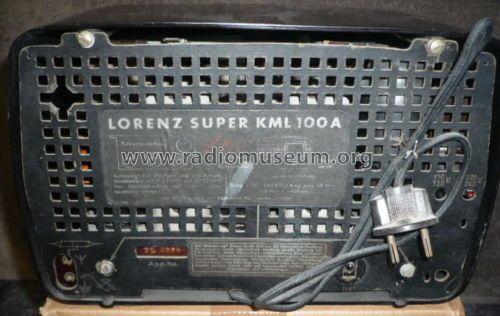

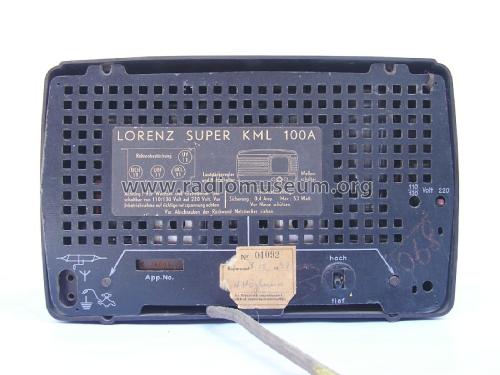

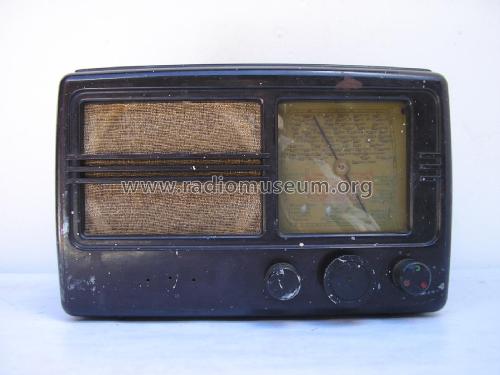

• Model: Super KML 100A [U-11er Röhren] - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 180 x 150 mm / 11.4 x 7.1 x 5.9 inch

• Notes

• Siehe auch Lorenz Super KML 100A mit Wehrmachtsröhren RV12P2001 und abweichender Skala.

• Circuit diagram reference
• Schenk-Regelien

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 730 models, 584 with images and 354 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
