100GW; Lorenz; Berlin, (ID = 749902) Radio

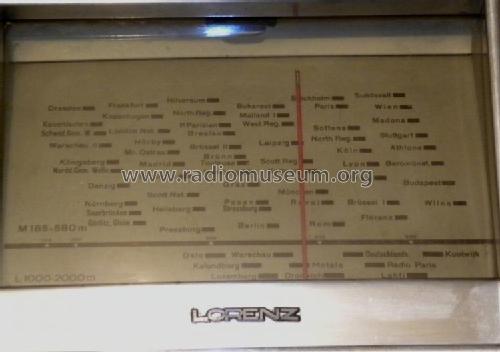

Lorenz; Berlin,: 100GW [Radio] ID = 749902 850x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model 100GW, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CF7 CL4 CY1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 100GW - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 275 x 270 mm / 22 x 10.8 x 10.6 inch
Notes auch für Drahtfunk.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 157.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
