167W Mit EM4

167W; Lorenz; Berlin, (ID = 8778) Radio

167W; Lorenz; Berlin, (ID = 18465) Radio
167W; Lorenz; Berlin, (ID = 438365) Radio 167W; Lorenz; Berlin, (ID = 438366) Radio
167W; Lorenz; Berlin, (ID = 438367) Radio 167W; Lorenz; Berlin, (ID = 213918) Radio
167W; Lorenz; Berlin, (ID = 438369) Radio
Use red slider bar for more.
167W; Lorenz; Berlin, (ID = 438365) Radio

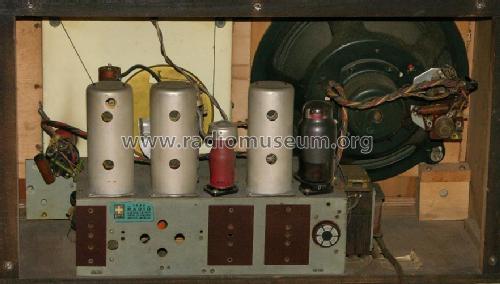

Lorenz; Berlin,: 167W [Radio] ID = 438365 889x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model 167W Mit EM4, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1942–1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH3 EF9 EBC3 EL3 EM4 EZ3
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 167W [Mit EM4] - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 575 x 370 x 260 mm / 22.6 x 14.6 x 10.2 inch
Notes Same model as Radiobell 168A.
Bandfiltereingang für MW und LW Bereich.
Net weight (2.2 lb = 1 kg) 14.2 kg / 31 lb 4.4 oz (31.278 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funkgeschichte der GFGF (9284)
