Alster GW

Alster GW; Lorenz; Berlin, (ID = 2070812) Radio

Alster GW; Lorenz; Berlin, (ID = 36284) Radio

Alster GW; Lorenz; Berlin, (ID = 538712) Radio

Alster GW; Lorenz; Berlin, (ID = 2122962) Radio
Alster GW; Lorenz; Berlin, (ID = 48501) Radio Alster GW; Lorenz; Berlin, (ID = 314351) Radio
Alster GW; Lorenz; Berlin, (ID = 38491) Radio Alster GW; Lorenz; Berlin, (ID = 310346) Radio
Alster GW; Lorenz; Berlin, (ID = 314352) Radio Alster GW; Lorenz; Berlin, (ID = 1385156) Radio
Alster GW; Lorenz; Berlin, (ID = 1385158) Radio Alster GW; Lorenz; Berlin, (ID = 1385159) Radio
Alster GW; Lorenz; Berlin, (ID = 1385160) Radio Alster GW; Lorenz; Berlin, (ID = 1385161) Radio
Use red slider bar for more.

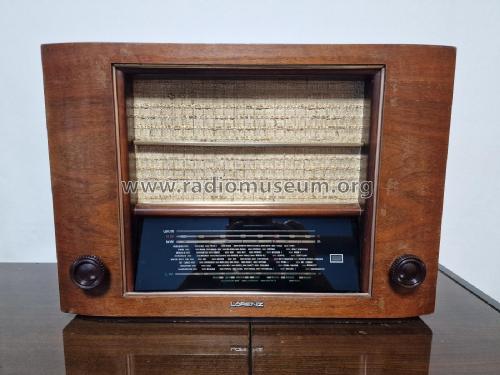

Alster GW; Lorenz; Berlin, (ID = 48501) Radio
Lorenz; Berlin,: Alster GW [Radio] ID = 48501 800x589

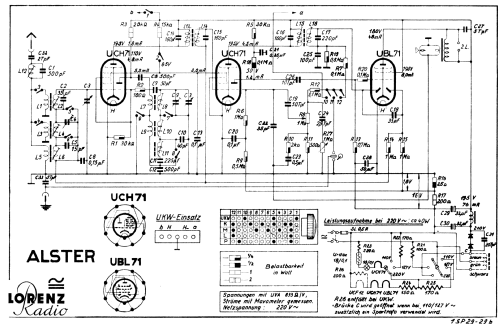

Select picture or schematic to display from thumbnails on the right and click for download.
For model Alster GW, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH71 UCH71 UBL71
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Alster GW - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 330 x 200 mm / 18.1 x 13 x 7.9 inch
Notes Elbe in Holz
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Price in first year of sale 236.00 DM
Collectors' prices
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau (4914)


All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
Here you find 692 models, 546 with images and 329 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
