Goldton 2 ZLFG 129
Lorenz; Berlin, Zuffenhausen u.a.
- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1930 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 233487
-
- Brand: SEL
Stoff nicht original
Stoff nicht original
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker

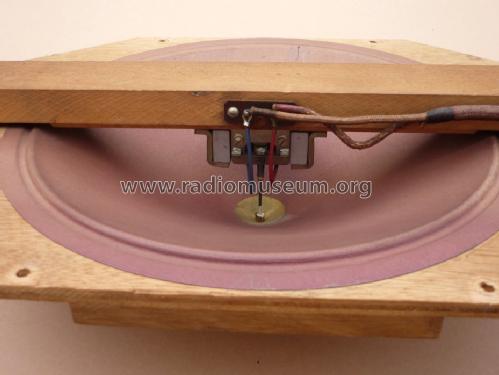

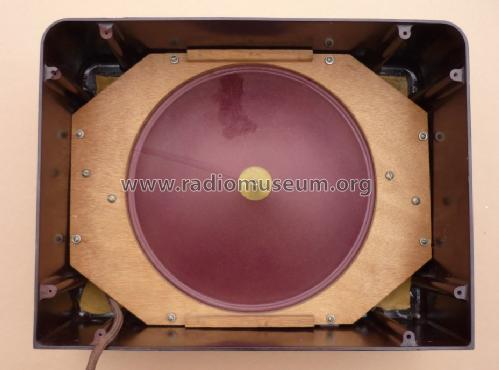

- Magnetic loudspeaker (reed) generic. / Ø 22 cm = 8.7 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Goldton 2 ZLFG 129 - Lorenz; Berlin, Zuffenhausen u
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 354 x 280 x 120 mm / 13.9 x 11 x 4.7 inch
- Notes
-
Magnetischer Lautsprecher, nicht einstellbar.
Konuslautsprecher der Goldtonserie 2 wurden auch im LORENZ Universo verwendet.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Price in first year of sale
- 45.00 RM
- Mentioned in
- Illustrierter Radiokatalog 1930/31
- Author
- Model page created by Reiner Scholz. See "Data change" for further contributors.
