• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 364271

• • Brand: SEL

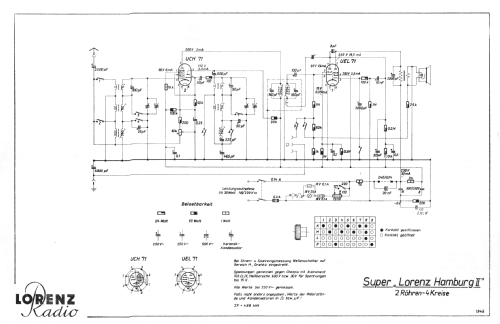

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UCH71 UEL71 Urdox

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 1 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 127; 220 V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Hamburg II - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, with any shape - general.

• Notes

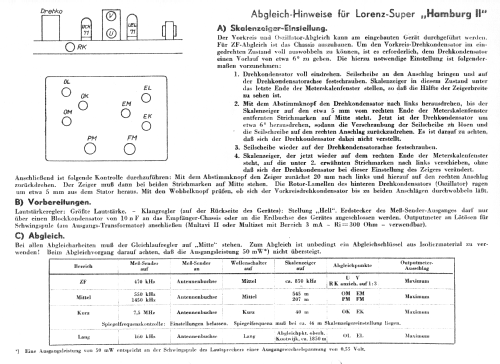

• Das Schema nennt eine ZF von 468 kHz, in den Abgleich-Hinweisen ist dagegen 470 kHz angegeben.

  Siehe auch Lorenz Hamburg.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Vorarlberger Museumswelt Museum. See "Data change" for further contributors.

• Other Models

• Here you find 736 models, 590 with images and 362 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
