• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2997

• • Brand: SEL

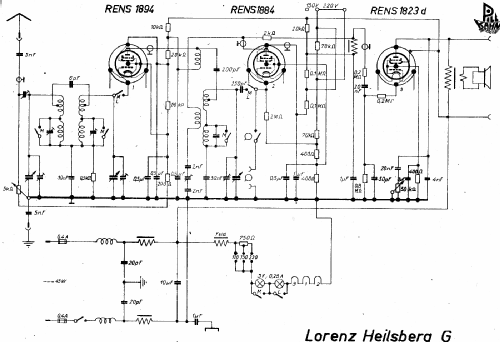

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1894 RENS1884 RENS1823d

• Main principle
• TRF with regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110; 150; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Heilsberg G - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 415 x 460 x 280 mm / 16.3 x 18.1 x 11 inch

• Notes

• Preis ohne Röhren, zusätzlich Röhrensatz Preis: 47,- RM

• Price in first year of sale
• 183.00 RM +

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Other Models

• Here you find 730 models, 584 with images and 353 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
