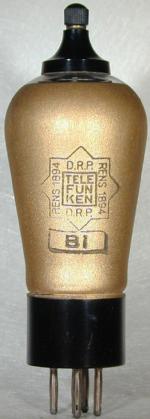

RENS1894

Information - Help
ID = 510

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Vacuum Pentode   RF/IF-Stage   Controlling (mu)
Identical to RENS1894 = H2618D = B2047 = NVS183 = HP2118
Similar Tubes
Normally replaceable-slightly different:
  S2012N
Heater different:
  RENS1294
Other base:
  NVS183_B5+1
First year 1933 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
1933 : Unterlagen Deutsches R.Museum
29.Oct.1933 : Funkschau
Predecessor Tubes RENS1819
Successor Tubes 1935   CF3
Base Europe 5-Pin , B5 (Eu O, F, O5A) 1928 (Codex=Fco) Top contact screw type.
Was used by Radio/TV-reception etc.
Filament Vf 20 Volts / If 0.18 Ampere / Indirect / Series, DC
Tube prices 1 Tube prices (visible for members only)
Information source Taschenbuch zum Röhren-Codex 1948/49

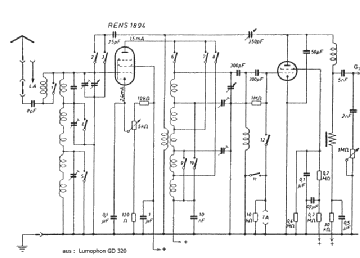

  RENS1894: Hersteller Lumophon
Heinz Höger

RENS1894: Collection JR
Jacob Roschy

RENS1894: Telefunken Werkstattbuch
Wolfgang Bauer

RENS1894: ?
Ernst Erb

from Just Qvigstad
Usage in Models 2= 1933? ; 34= 1933 ; 20= 1934 ; 5= 1935
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):61
Museum "Das Rundfunkmuseum"
Collection of Jacob Roschy (D)
Collection of Martin Steyer (D)
Collection of Karl - Heinz Bossan (D)
Collection of Jürgen Tiedmann (D)
Collection of a member from D
