- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3168
-
- Brand: SEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- AC/DC-set / 110; 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Material
- Wooden case
- from Radiomuseum.org

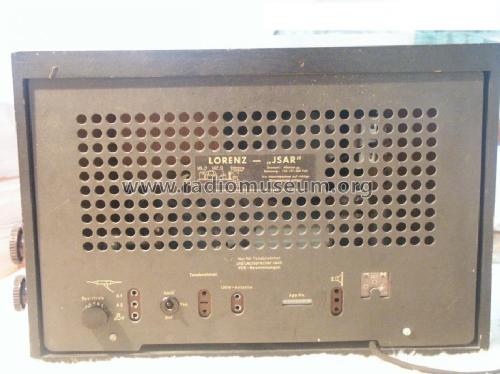

- Model: Isar GW - Lorenz; Berlin, Zuffenhausen u
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 327 x 195 mm / 18.1 x 12.9 x 7.7 inch
- Notes
- UKW-Pendler, 86···101 MHz; Skalen-Lampe: 18 V/0,1 A. [FS5016].
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Price in first year of sale
- 169.00 DM
- Source of data
- Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Funk-Technik (FT) (5017)
