LVA2; Lorenz; Berlin, (ID = 1291551) Ampl/Mixer
LVA2; Lorenz; Berlin, (ID = 710770) Ampl/Mixer LVA2; Lorenz; Berlin, (ID = 710772) Ampl/Mixer
LVA2; Lorenz; Berlin, (ID = 58938) Ampl/Mixer LVA2; Lorenz; Berlin, (ID = 710771) Ampl/Mixer
LVA2; Lorenz; Berlin, (ID = 1162844) Ampl/Mixer LVA2; Lorenz; Berlin, (ID = 1162845) Ampl/Mixer

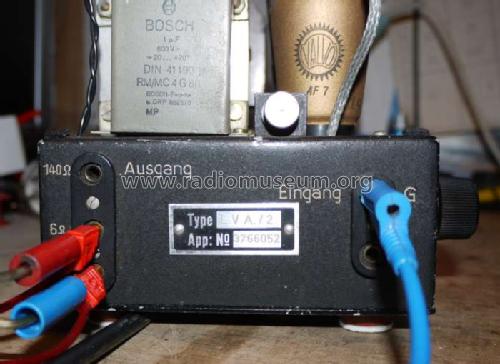

LVA2; Lorenz; Berlin, (ID = 1162846) Ampl/Mixer LVA2; Lorenz; Berlin, (ID = 1162847) Ampl/Mixer
Use red slider bar for more.
LVA2; Lorenz; Berlin, (ID = 710770) Ampl/Mixer
Lorenz; Berlin,: LVA2 [Ampl/Mixer] ID = 710770 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model LVA2, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1938–1940 Category: Audio Amplifier or -mixer
Valves / Tubes 3: AF7 RE614 AZ1
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: LVA2 - Lorenz; Berlin, Zuffenhausen u
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 240 x 200 x 140 mm / 9.4 x 7.9 x 5.5 inch

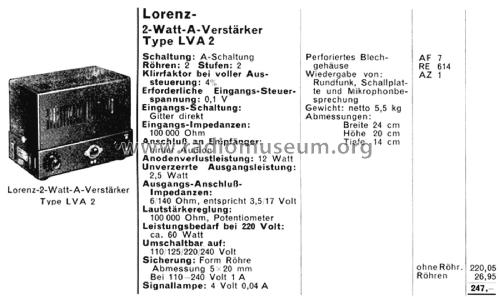

Notes Eingangs-Steuerspannung: 0,1 V; Ausgangs-Impedanzen: 6 und 140 Ohm.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 247.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
