Super 150A/I

Super 150A/I; Lorenz; Berlin, (ID = 68830) Radio

Super 150A/I; Lorenz; Berlin, (ID = 68831) Radio

Super 150A/I; Lorenz; Berlin, (ID = 68833) Radio

Super 150A/I; Lorenz; Berlin, (ID = 68835) Radio

Super 150A/I; Lorenz; Berlin, (ID = 68837) Radio

Super 150A/I; Lorenz; Berlin, (ID = 68840) Radio

Super 150A/I; Lorenz; Berlin, (ID = 8770) Radio

Super 150A/I; Lorenz; Berlin, (ID = 1092649) Radio

Super 150A/I; Lorenz; Berlin, (ID = 1092655) Radio
Super 150A/I; Lorenz; Berlin, (ID = 39796) Radio Super 150A/I; Lorenz; Berlin, (ID = 3691) Radio
Super 150A/I; Lorenz; Berlin, (ID = 3689) Radio Super 150A/I; Lorenz; Berlin, (ID = 422) Radio
Super 150A/I; Lorenz; Berlin, (ID = 1179811) Radio Super 150A/I; Lorenz; Berlin, (ID = 1179812) Radio
Super 150A/I; Lorenz; Berlin, (ID = 1179814) Radio Super 150A/I; Lorenz; Berlin, (ID = 1179815) Radio
Super 150A/I; Lorenz; Berlin, (ID = 1272366) Radio Super 150A/I; Lorenz; Berlin, (ID = 1272367) Radio
Use red slider bar for more.
Super 150A/I; Lorenz; Berlin, (ID = 39796) Radio
Lorenz; Berlin,: Super 150A/I [Radio] ID = 39796 791x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 150A/I, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11 U2410P
Main principle Superheterodyne (common); ZF/IF 478 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super 150A/I - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 310 x 260 mm / 21.3 x 12.2 x 10.2 inch
Notes Nora-G.+Nord-Exp.kl.Sch.Änd.
Price in first year of sale 199.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

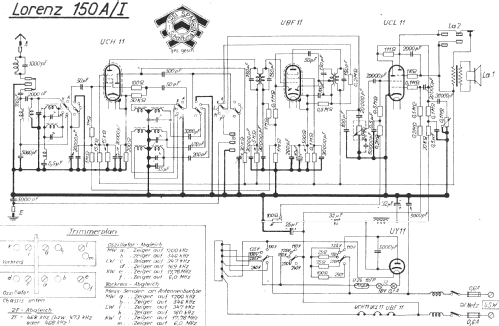

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
