• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192740

• • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• DC90 DF96 DF96 DK96 DF96 DF96 DAF96 DL94

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / AC/DC 110; 127; 155; 220; Batt.90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 inch = 40.6 cm

• Material
• Bakelite case

• from Radiomuseum.org

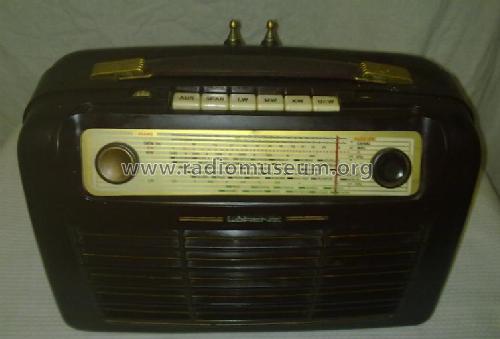

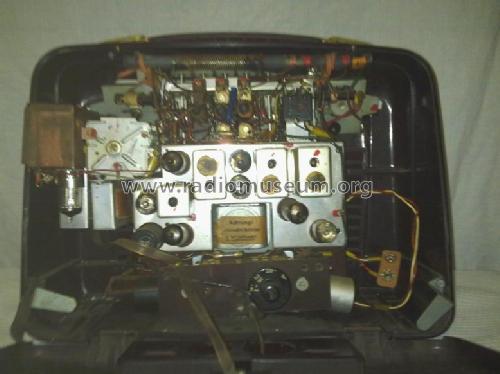

• Model: Touring 9047L - Lorenz; Berlin, Zuffenhausen u

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 340 x 250 x 150 mm / 13.4 x 9.8 x 5.9 inch

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Author
• Model page created by Wilfried Winter. See "Data change" for further contributors.
