Längstwellenempfänger LE11
Lorenz i.V. Leipzig (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Lorenz i.V. Leipzig (Ostd.)
- Year
- 1955 ?
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 223351
- Number of Tubes
- 5
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Long Wave and/or Very Low Frequency (VLF).
- Power type and voltage
- Alternating Current supply (AC) / 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

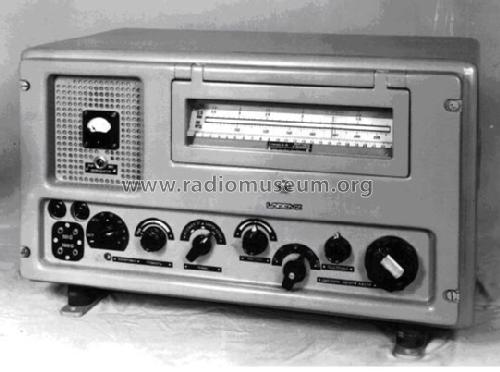

- Model: Längstwellenempfänger LE11 - Lorenz i.V. Leipzig Ostd.
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 550 x 324 x 310 mm / 21.7 x 12.8 x 12.2 inch
- Notes
-
Hersteller C. Lorenz AG, Werk Leipzig in Verwaltung.
1952 vom Funkwerk Dabendorf als LWEM-10 zur Leipziger Frühjahresmesse vorgestellt.
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Literature/Schematics (1)
- GFGF-Schriftenreihe zur Funkgeschichte Band 29
- Author
- Model page created by Klaus Bayer. See "Data change" for further contributors.
