For model BV {БВ}, Moscow Telegraph Works (ex-Morse):
Thanks for Dmitrij Gurjanov, Russia

Country:  Soviet Union
Manufacturer / Brand:  Moscow Telegraph Works (ex-Morse)
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: МДС
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4/6-15 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: BV {БВ} - Moscow Telegraph Works ex-

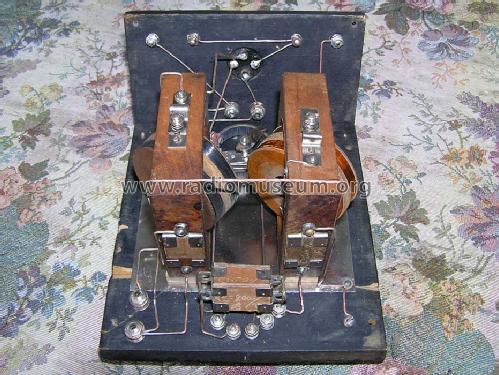

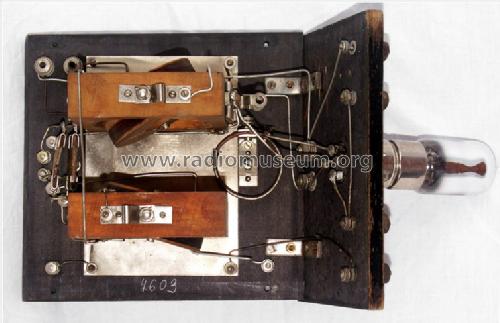

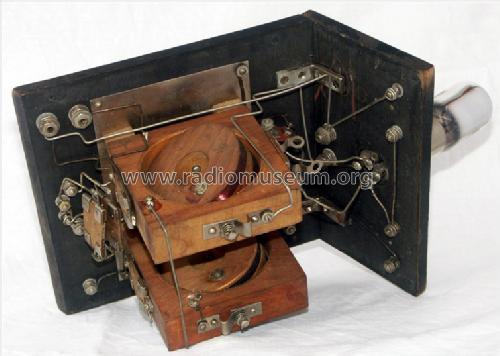

Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 170 x 190 x 170 mm / 6.7 x 7.5 x 6.7 inch
Notes Coverage 300-1875 meters in 4 ranges. Tube "mikro"(40-100V anode) or "mds"(6-15V anode). Set may used as simple crystal radio too.
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Source of data -- Original prospect or advert

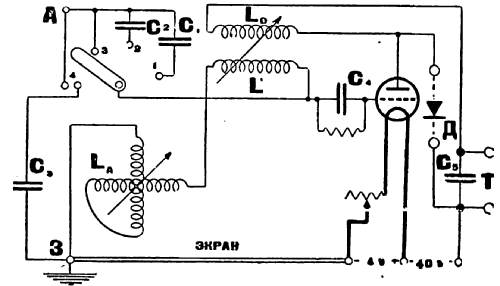

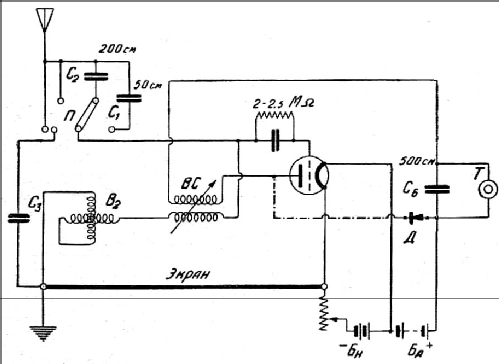

Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Moscow Telegraph Works (ex-Morse)
Here you find 6 models, 6 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
