• Country
• Germany

• Manufacturer / Brand
• LTP, Apparatewerk Lennartz & Boucke KG, Tübingen (Siehe auch LTP Himmelwerk AG)

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15862

• Number of Tubes
• 4

• Valves / Tubes
• UCH5 UBF11 UCL11 UY11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

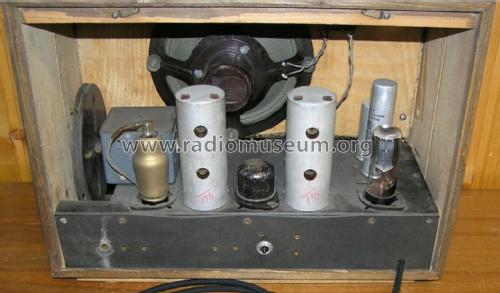

• Model: Zauberflöte Junior [mit UCL11, UY11] - LTP, Apparatewerk Lennartz &

• Notes
• [684907]

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funk-Technik (FT) (4914)
