52W (W52)

52W ; Lumophon, Bruckner & (ID = 9128) Radio

52W ; Lumophon, Bruckner & (ID = 22253) Radio

52W ; Lumophon, Bruckner & (ID = 341337) Radio

52W ; Lumophon, Bruckner & (ID = 1570488) Radio
52W ; Lumophon, Bruckner & (ID = 805940) Radio 52W ; Lumophon, Bruckner & (ID = 20536) Radio
52W ; Lumophon, Bruckner & (ID = 472248) Radio 52W ; Lumophon, Bruckner & (ID = 443) Radio
52W ; Lumophon, Bruckner & (ID = 20537) Radio 52W ; Lumophon, Bruckner & (ID = 64754) Radio
52W ; Lumophon, Bruckner & (ID = 472230) Radio 52W ; Lumophon, Bruckner & (ID = 641136) Radio
52W ; Lumophon, Bruckner & (ID = 1382364) Radio
Use red slider bar for more.
52W ; Lumophon, Bruckner & (ID = 805940) Radio
Lumophon, Bruckner &: 52W [Radio] ID = 805940 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 52W (W52), Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1930–1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN804 RE134 RGN354
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 52W - Lumophon, Bruckner & Stark,
Material Metal case
Dimensions (WHD) 256 x 186 x 180 mm / 10.1 x 7.3 x 7.1 inch
Notes [569]
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Price in first year of sale 89.00 RM !
Collectors' prices
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb

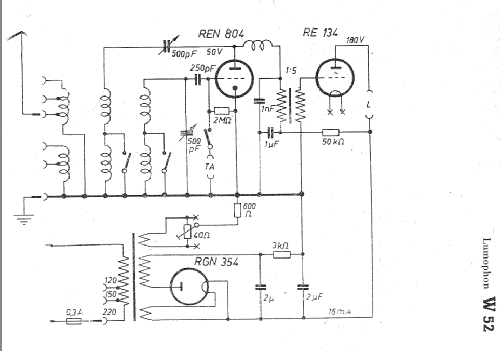

Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Katalog Radio-Zentrale Prohaska 1931/32
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.


All listed radios etc. from Lumophon, Bruckner & Stark, Nürnberg
Here you find 296 models, 244 with images and 197 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
