• Year
  • 1934/1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 3348
    • Brand: Lumeta

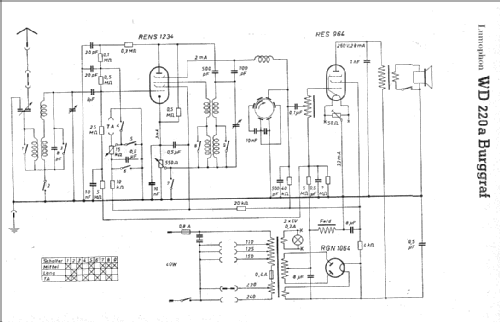

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 1 AF stage(s); Reflex
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

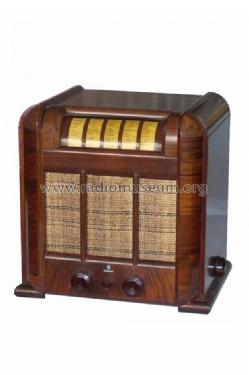

  • Model: Burggraf W WD220a - Lumophon, Bruckner & Stark,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 393 x 385 x 280 mm / 15.5 x 15.2 x 11 inch
  • Notes
  • a=TA-Anschluss; andere Schaltung.
  • Price in first year of sale
  • 200.00 RM
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
  • Picture reference
  • Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.

 Collections | Museums | Literature

Collections

The model Burggraf W is part of the collections of the following members.

 Forum

Forum contributions about this model: Lumophon, Bruckner &: Burggraf W WD220a

Threads: 2 | Posts: 2

Es ist nur das Modell WD220a angelegt, nicht jedoch das Modell WD220.

Allerdings findet man beim Modell WD220a auch Schaltungen vom WD220.

Schaltungsmäßig unterscheiden sich diese beiden Modelle jedoch. Möglicherweise aber kaum im Gehäuse.

Edit 19.01.2020: Das Modell WD220 ist angelegt. Danke!

MfG DR

Dietmar Rudolph † 6.1.22, 18.Jan.20

Weitere Posts (1) zu diesem Thema.

Siehe auch: Reiter "Forum" Rundfunkempfänger/ Schaltungstechnik: Die Reflexschaltung, untersucht an dem Zweikreiser "Burggraf von Lumophon"

Hermann Freudenberg † 2006, 06.Jan.03

Weitere Posts (1) zu diesem Thema.
