Edler GW325

Edler GW325; Lumophon, Bruckner & (ID = 1573885) Radio

Edler GW325; Lumophon, Bruckner & (ID = 736487) Radio

Edler GW325; Lumophon, Bruckner & (ID = 14539) Radio

Edler GW325; Lumophon, Bruckner & (ID = 8982) Radio

Edler GW325; Lumophon, Bruckner & (ID = 1104725) Radio
Edler GW325; Lumophon, Bruckner & (ID = 805945) Radio Edler GW325; Lumophon, Bruckner & (ID = 417082) Radio
Edler GW325; Lumophon, Bruckner & (ID = 708135) Radio Edler GW325; Lumophon, Bruckner & (ID = 686113) Radio
Edler GW325; Lumophon, Bruckner & (ID = 991250) Radio
Use red slider bar for more.
Edler GW325; Lumophon, Bruckner & (ID = 805945) Radio
Lumophon, Bruckner &: Edler GW325 [Radio] ID = 805945 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Edler GW325, Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CH1 CF7 CL2 CY1 U1220
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Edler GW325 - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 465 x 385 x 280 mm / 18.3 x 15.2 x 11 inch
Price in first year of sale 261.00 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

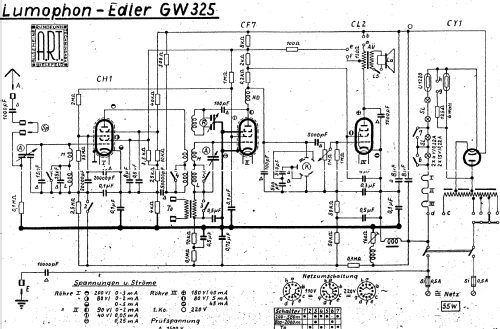

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

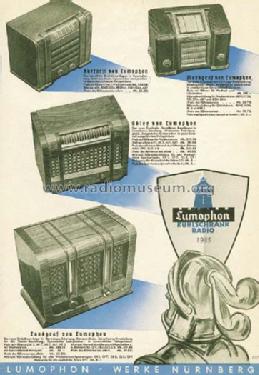

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
