Erbgraf W WD225; Lumophon, Bruckner & (ID = 14260) Radio

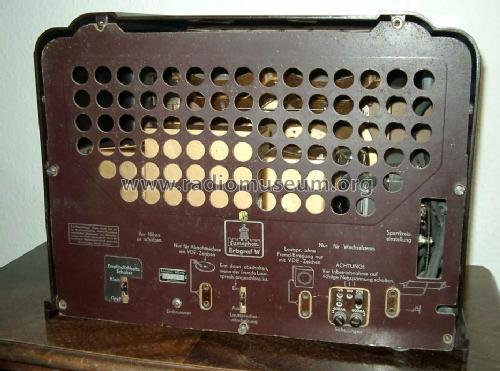

Lumophon, Bruckner &: Erbgraf W WD225 [Radio] ID = 14260 462x398
Select picture or schematic to display from thumbnails on the right and click for download.
For model Erbgraf W WD225, Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1234 AB1 RES964 RGN1064
Main principle TRF with diode detector; 1 Special; 1 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Erbgraf W WD225 - Lumophon, Bruckner & Stark,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 347 x 270 mm / 18.5 x 13.7 x 10.6 inch
Notes Rückkopplung; Reflex.
Price in first year of sale 210.00 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Lumophon, Bruckner & Stark, Nürnberg
Here you find 300 models, 249 with images and 198 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
