GD470

GD470; Lumophon, Bruckner & (ID = 1112038) Radio

GD470; Lumophon, Bruckner & (ID = 8975) Radio

GD470; Lumophon, Bruckner & (ID = 1577576) Radio
GD470; Lumophon, Bruckner & (ID = 708127) Radio GD470; Lumophon, Bruckner & (ID = 24790) Radio
GD470; Lumophon, Bruckner & (ID = 24791) Radio GD470; Lumophon, Bruckner & (ID = 24792) Radio

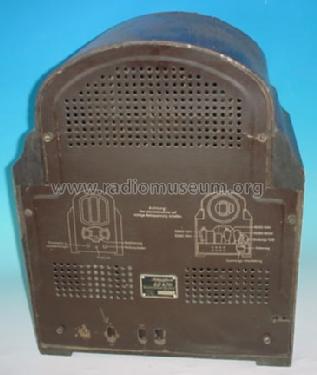

GD470; Lumophon, Bruckner & (ID = 24793) Radio GD470; Lumophon, Bruckner & (ID = 1504918) Radio
Use red slider bar for more.
GD470; Lumophon, Bruckner & (ID = 708127) Radio
Lumophon, Bruckner &: GD470 [Radio] ID = 708127 436x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model GD470, Lumophon, Bruckner & Stark, Nürnberg:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1884 RENS1884 RENS1894 RENS1823d
Main principle Superheterodyne (common); ZF/IF 375 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: GD470 - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 384 x 479 x 250 mm / 15.1 x 18.9 x 9.8 inch
Price in first year of sale 221.00 RM +
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
