GW211U - GW211/U1

GW211U - GW211/U1; Lumophon, Bruckner & (ID = 23233) Radio GW211U - GW211/U1; Lumophon, Bruckner & (ID = 2439540) Radio
GW211U - GW211/U1; Lumophon, Bruckner & (ID = 2439987) Radio
Use red slider bar for more.
GW211U - GW211/U1; Lumophon, Bruckner & (ID = 23233) Radio
Lumophon, Bruckner &: GW211U - GW211/U1 [Radio] ID = 23233 492x381
Select picture or schematic to display from thumbnails on the right and click for download.
For model GW211U - GW211/U1, Lumophon, Bruckner & Stark, Nürnberg:

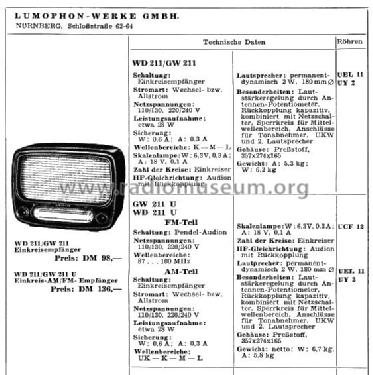

Quelle: FS 5017

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCF12 UEL11 UY2
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 120/230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: GW211U - GW211/U1 - Lumophon, Bruckner & Stark,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 358 x 275 x 165 mm / 14.1 x 10.8 x 6.5 inch
Notes

kapazitive Rückkopplung.

Der Katalog des Rundfunk-Grosshandels 1950/51 führt das Modell als GW211U, der Hersteller-Prospekt nennt GW211/U1

Der Radiokatalog Band 1, Ernst Erb, nennt irrtümlich UY11 -oder- UY2 als Gleichrichterrohr. In Funkschau Heft 16 und 17 Jg. 1950 wird nur die UY2 geführt wie sie auch tatsächlich Verwendung fand.

Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Price in first year of sale 136.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau (16/1950, S.252)
Literature/Schematics (1) Funkschau (17/1950, S.279f.)
