UY2

Information - Help
ID = 680

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Developer: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Half-Wave Vacuum Rectifier   Power-supply
Identical to UY2
First year 1949 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
May.1949 : Funkschau 1949 # 10
Predecessor Tubes VY2
Successor Tubes 1947   UY41
Base Europe side contact, small P5 (Au V, 5E)
Was used by Radio/TV-reception etc.
Filament Vf 26 Volts / If 0.1 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Tube prices 6 Tube prices (visible for members only)
Tube Tester Data Avo CT160

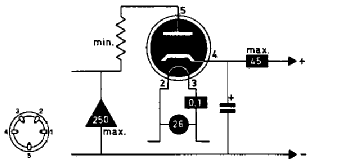

UY2: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †
uy2_so.png UY2: rtt
Anonymous 10 Collector
More ...
Just Qvigstad 		uy2_techdat01.png
UY2: SEL Handbuch 1964
Peter Hoddow
More ...
Usage in Models 2= 1949?? ; 3= 1949? ; 15= 1949 ; 21= 1950 ; 1= 1952? ; 1= 9999
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):43
