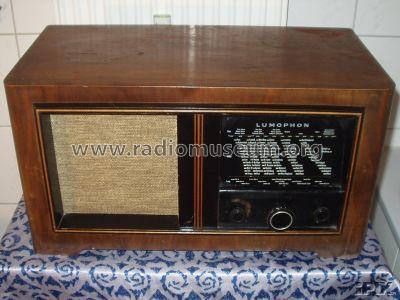

For model GW302, Lumophon, Bruckner & Stark, Nürnberg:
Bild ebay

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1939–1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UBF11 UCL11 UY11
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: GW302 - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 562 x 305 x 285 mm / 22.1 x 12 x 11.2 inch
Net weight (2.2 lb = 1 kg) 12.1 kg / 26 lb 10.4 oz (26.652 lb)
Price in first year of sale 179.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
