GW461 Bakelit

GW461; Lumophon, Bruckner & (ID = 2372029) Radio GW461; Lumophon, Bruckner & (ID = 2372030) Radio
GW461; Lumophon, Bruckner & (ID = 2372031) Radio GW461; Lumophon, Bruckner & (ID = 2372032) Radio

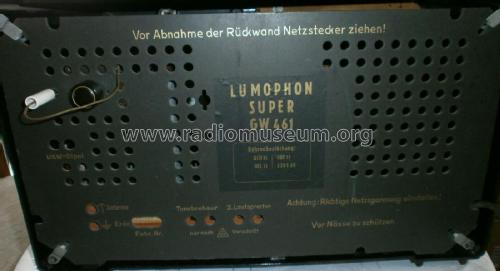

GW461; Lumophon, Bruckner & (ID = 2372034) Radio
Use red slider bar for more.

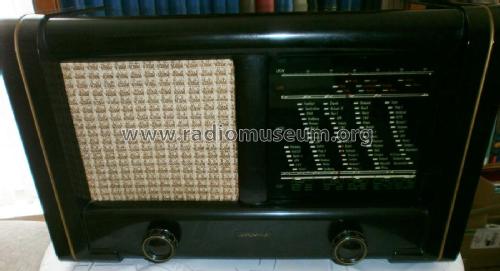

GW461; Lumophon, Bruckner & (ID = 2372029) Radio
Lumophon, Bruckner &: GW461 [Radio] ID = 2372029 1400x761
Select picture or schematic to display from thumbnails on the right and click for download.
For model GW461 Bakelit, Lumophon, Bruckner & Stark, Nürnberg:
ebay 333107977019, manfred1020

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH11 UBF11 UCL11
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: GW461 [Bakelit] - Lumophon, Bruckner & Stark,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 465 x 280 x 210 mm / 18.3 x 11 x 8.3 inch
Notes

Siehe auch Lumophon GW461 mit Holzgehäuse.

Gleichrichter: 220E60

Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)
Mentioned in -- Original prospect or advert

Model page created by Martin Steyer. See "Data change" for further contributors.
