• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 3379
    • Brand: Lumeta

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 1 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

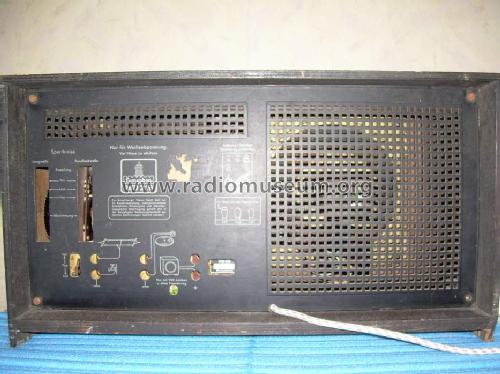

  • Model: WD219 - Lumophon, Bruckner & Stark,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 590 x 310 x 300 mm / 23.2 x 12.2 x 11.8 inch
  • Notes
  •
  • Net weight (2.2 lb = 1 kg)
  • 13 kg / 28 lb 10.1 oz (28.634 lb)
  • Price in first year of sale
  • 141.00 RM
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
