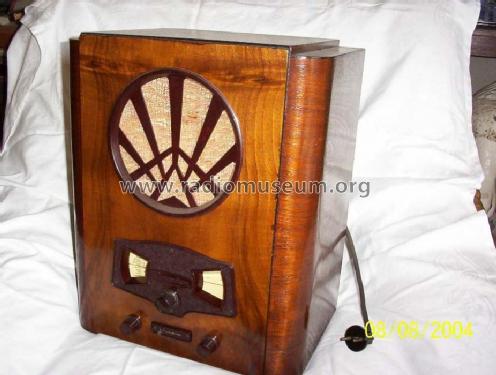

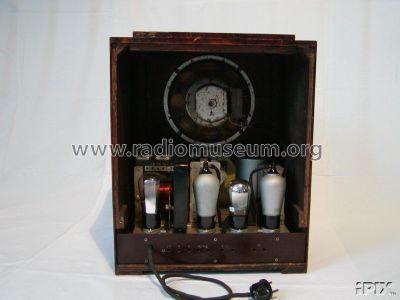

Lumophon, Bruckner &: WD23 [Radio] ID = 64915 927x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model WD23, Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner

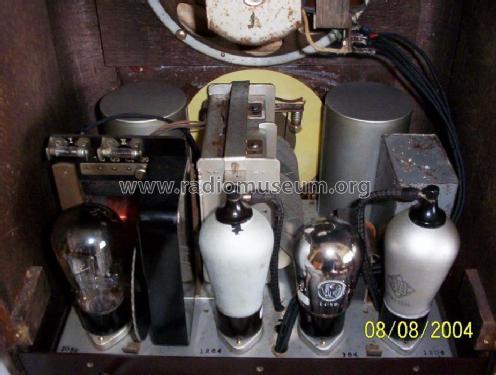

Valves / Tubes 4: RENS1264 RENS1204 RES164 RGN1054
Main principle TRF with regeneration; 1 Special; 1 AF stage(s); Anode bend detection
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: WD23 - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 360 x 450 x 250 mm / 14.2 x 17.7 x 9.8 inch
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 168.00 RM +
Collectors' prices
Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb

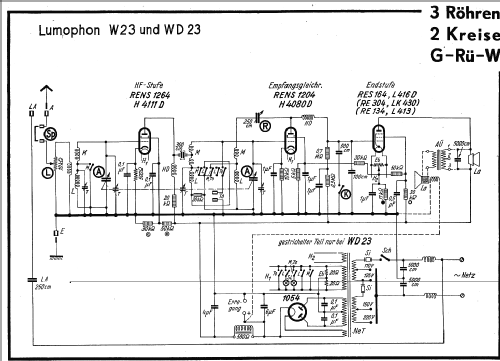

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Historische Radios (1-5) = zur Verknüpfung mit Modellseiten
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
