• Country
• Germany

• Manufacturer / Brand
• Lumophon, Bruckner & Stark, Nürnberg

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3306

• • Brand: Lumeta

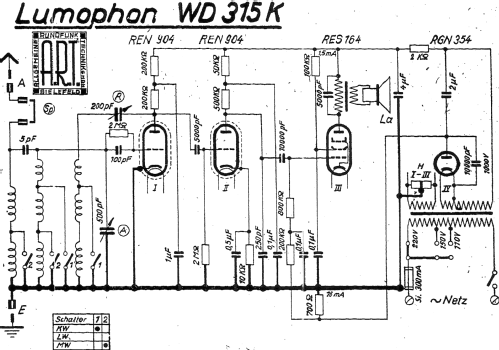

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• REN904 REN904 RES164 RGN354

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: WD315K - Lumophon, Bruckner & Stark,

• Notes
• Jahr gem. Handb. der Rundfunk-Reparatur von Werner W. Diefenbach - Info Herr H. Grunert.

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Other Models

• Here you find 301 models, 252 with images and 200 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lumophon, Bruckner & Stark, Nürnberg
