WD476

WD476; Lumophon, Bruckner & (ID = 9166) Radio
WD476; Lumophon, Bruckner & (ID = 82333) Radio WD476; Lumophon, Bruckner & (ID = 82334) Radio
WD476; Lumophon, Bruckner & (ID = 1959474) Radio WD476; Lumophon, Bruckner & (ID = 1959475) Radio
Use red slider bar for more.
WD476; Lumophon, Bruckner & (ID = 82333) Radio
Lumophon, Bruckner &: WD476 [Radio] ID = 82333 933x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model WD476, Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH4 ECH4 EBL1 AZ1 or AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: WD476 - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 250 x 220 mm / 16.5 x 9.8 x 8.7 inch
Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 495.00 DM
Source of data Das Rundfunk-Jahr 1948/49 / Radiokatalog Band 1, Ernst Erb

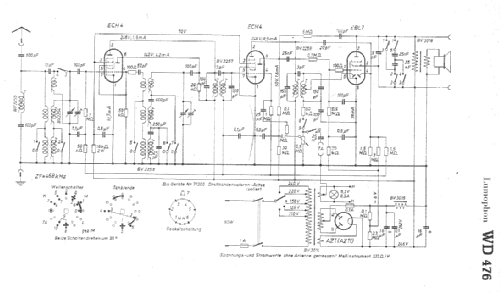

Circuit diagram reference Lange-Nowisch
