• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345114

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCC85 UCH81 UBF89 UCL82

• Number of Transistors

• Semiconductors
• OA172 OA172 E250C130

• Main principle
• Superheterodyne (common); ZF/IF 462/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• AC/DC-set / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

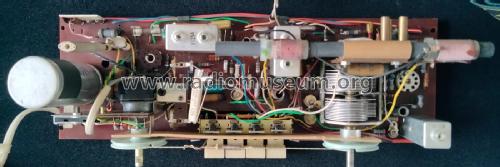

• Model: 4190 L - Luxor Radio AB; Motala

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 330 x 150 x 130 mm / 13 x 5.9 x 5.1 inch

• Net weight (2.2 lb = 1 kg)
• 2.050 kg / 4 lb 8.2 oz (4.515 lb)

• Author
• Model page created by Heikki Rinnemaa. See "Data change" for further contributors.
