67W

67W; Luxor Radio AB; (ID = 18539) Radio
67W; Luxor Radio AB; (ID = 902684) Radio 67W; Luxor Radio AB; (ID = 902688) Radio
67W; Luxor Radio AB; (ID = 902683) Radio 67W; Luxor Radio AB; (ID = 902681) Radio
67W; Luxor Radio AB; (ID = 902682) Radio 67W; Luxor Radio AB; (ID = 902689) Radio
Use red slider bar for more.
67W; Luxor Radio AB; (ID = 902684) Radio

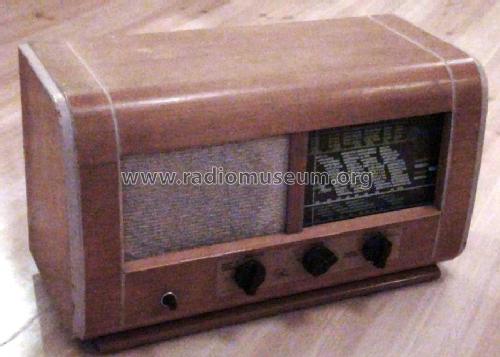

Luxor Radio AB;: 67W [Radio] ID = 902684 933x668
Select picture or schematic to display from thumbnails on the right and click for download.
For model 67W, Luxor Radio AB; Motala

Country:  Sweden
Manufacturer / Brand:  Luxor Radio AB; Motala
alternative name

Luxorita - voir Luxor Radio AB Suède (Sweden)
Year: 1945 ? Category: Broadcast Receiver - or past WW2 Tuner

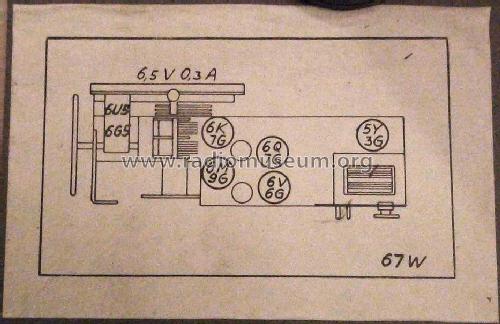

Valves / Tubes 6: 6M9G 6K7G 6Q7G 6V6G 6U5 or 6G5 5Y3G
Main principle Superheterodyne (common); ZF/IF 490 kHz
Tuned circuits 5 AM circuit(s)

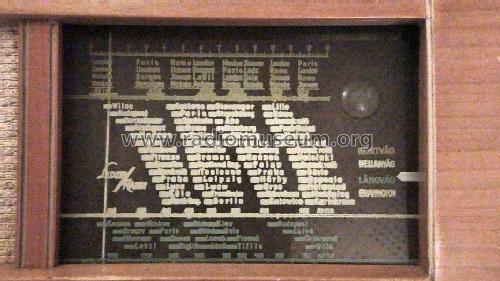

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 125; 135; 150; 190; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 67W - Luxor Radio AB; Motala
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 520 x 300 x 225 mm / 20.5 x 11.8 x 8.9 inch
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from Luxor Radio AB; Motala
Here you find 365 models, 271 with images and 125 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
