96W

96W; Luxor Radio AB; (ID = 18563) Radio
96W; Luxor Radio AB; (ID = 621505) Radio 96W; Luxor Radio AB; (ID = 621508) Radio
96W; Luxor Radio AB; (ID = 621506) Radio 96W; Luxor Radio AB; (ID = 353932) Radio
96W; Luxor Radio AB; (ID = 621507) Radio
Use red slider bar for more.
96W; Luxor Radio AB; (ID = 621505) Radio
Luxor Radio AB;: 96W [Radio] ID = 621505 933x651
Select picture or schematic to display from thumbnails on the right and click for download.
For model 96W, Luxor Radio AB; Motala:
Aus der Sammlung von Thomas Bollinger, CH - 8222 Beringen

Country:  Sweden
Manufacturer / Brand:  Luxor Radio AB; Motala
alternative name

Luxorita - voir Luxor Radio AB Suède (Sweden)
Year: 1945 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6J8G 6K7G 6Q7G 6V6G 6UG5G AZ11
Main principle Superheterodyne (common); ZF/IF 490 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 125; 135; 150; 190; 220; 230 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 96W - Luxor Radio AB; Motala
Material Wooden case
Shape Tablemodel, low profile (big size).
External source of data E. Erb 3-907007-36-0

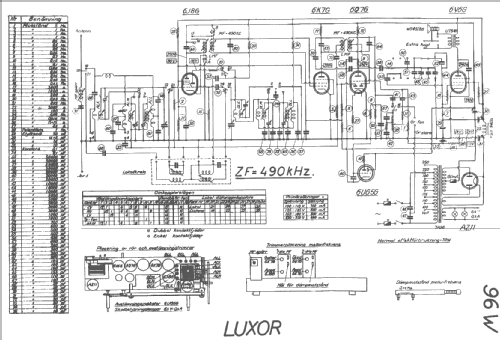

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from Luxor Radio AB; Motala
Here you find 367 models, 272 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
