Carmen 33MW Ch= M33W

Carmen 33MW Ch= M33W; Luxor Radio AB; (ID = 18550) Radio
Use red slider bar for more.
Carmen 33MW Ch= M33W; Luxor Radio AB; (ID = 18550) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Sweden
Manufacturer / Brand:  Luxor Radio AB; Motala
alternative name

Luxorita - voir Luxor Radio AB Suède (Sweden)
Year: 1945 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6J9SG 7H7 7B6 7H7 6UG5G 7B5 7B5 5Y3G
Main principle Superheterodyne (common); ZF/IF 490 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 100; 110; 125; 135; 150; 190; 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Carmen 33MW Ch= M33W - Luxor Radio AB; Motala
Material Wooden case
Shape Console with any shape - in general
Notes Push-pull output. The schematic shows designations W33W, M31W, M33W, M35W and G III NW for the same schematic. One or some of the models must have been sold also in Switzerland in some quantity. The board on the rear of this particular set shows Luxor Carmen 33MW and the small manual with it is also for 33ML. The Luxor Carmen 33MW is a console with a built in record changer, but we believe there are also table models without record changer.
External source of data E. Erb 3-907007-36-0

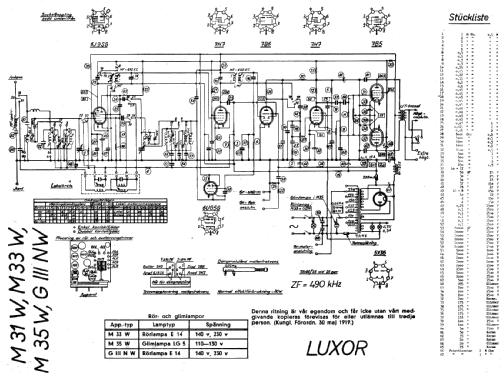

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from Luxor Radio AB; Motala
Here you find 367 models, 272 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
