Turisti R93LB

Turisti R93LB; Luxor, Helsinki - (ID = 1202726) Radio Turisti R93LB; Luxor, Helsinki - (ID = 1142195) Radio
Turisti R93LB; Luxor, Helsinki - (ID = 1202728) Radio Turisti R93LB; Luxor, Helsinki - (ID = 1202729) Radio
Turisti R93LB; Luxor, Helsinki - (ID = 1202730) Radio Turisti R93LB; Luxor, Helsinki - (ID = 1202731) Radio
Turisti R93LB; Luxor, Helsinki - (ID = 1202732) Radio Turisti R93LB; Luxor, Helsinki - (ID = 1202772) Radio
Turisti R93LB; Luxor, Helsinki - (ID = 1308589) Radio Turisti R93LB; Luxor, Helsinki - (ID = 1308590) Radio
Use red slider bar for more.

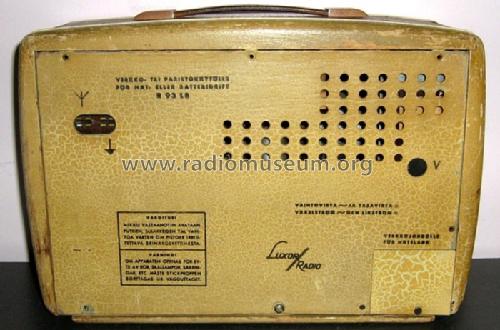

Turisti R93LB; Luxor, Helsinki - (ID = 1202726) Radio
Luxor, Helsinki -: Turisti R93LB [Radio] ID = 1202726 750x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model Turisti R93LB, Luxor, Helsinki - see also Sweden

Country:  Finland
Manufacturer / Brand:  Luxor, Helsinki - see also Sweden
alternative name

Iskumetalli Oy
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK92 DF91 DF91 DAF91 DL94
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 2 x 4,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: Turisti R93LB - Luxor, Helsinki - see also
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 375 x 260 x 160 mm / 14.8 x 10.2 x 6.3 inch
Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Luxor, Helsinki - see also Sweden
Here you find 50 models, 40 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
