• Year
  • 1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 209042

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 485 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220; 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

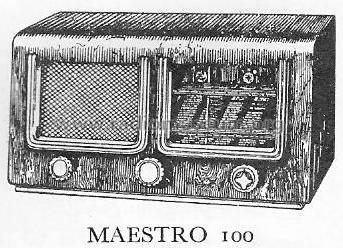

  • Model: 100 - Maestro, Turku
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 440 x 275 x 205 mm / 17.3 x 10.8 x 8.1 inch
  • Notes
  • Dial lamps: 2 x 6,5V/0,3A
  • Author
  • Model page created by Timo Rantasaari. See "Data change" for further contributors.
