A22

A22; Magnadyne Radio; (ID = 606766) Radio

A22; Magnadyne Radio; (ID = 2465754) Radio
A22; Magnadyne Radio; (ID = 783757) Radio
Use red slider bar for more.
A22; Magnadyne Radio; (ID = 783757) Radio
Magnadyne Radio;: A22 [Radio] ID = 783757 819x344
Select picture or schematic to display from thumbnails on the right and click for download.
For model A22, Magnadyne Radio; Torino:
Magnadyne A22 (Annuario ANIE 1955-56)

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 12P1 12DT1 35F4 35R2
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 120-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: A22 - Magnadyne Radio; Torino
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 170 x 140 mm / 10.6 x 6.7 x 5.5 inch
Notes Serie ANIE.
Price in first year of sale 22'750.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Catalogo ANIE (1955-56)

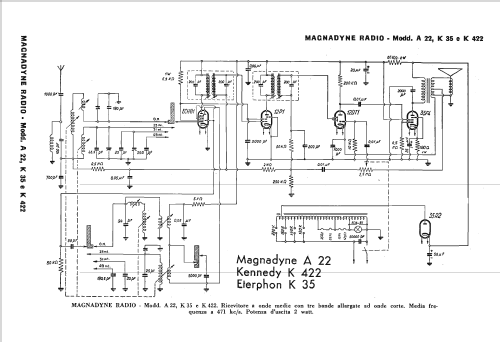

Literature/Schematics (1) -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
