Giradischi Ch= PE 3420

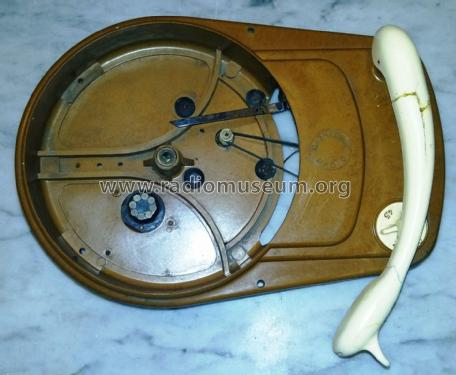

Giradischi Ch= PE 3420; Magnadyne Radio; (ID = 2382591) R-Player Giradischi Ch= PE 3420; Magnadyne Radio; (ID = 2382592) R-Player

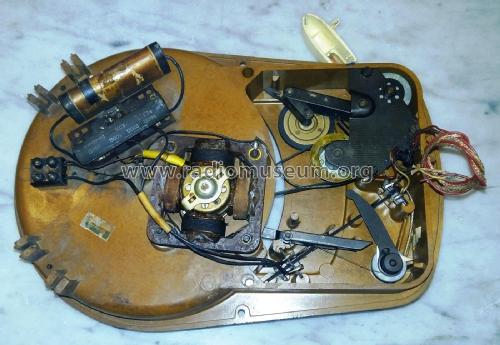

Giradischi Ch= PE 3420; Magnadyne Radio; (ID = 2382593) R-Player
Use red slider bar for more.
Giradischi Ch= PE 3420; Magnadyne Radio; (ID = 2382591) R-Player
Magnadyne Radio;: Giradischi Ch= PE 3420 [R-Player] ID = 2382591 1400x1144
Select picture or schematic to display from thumbnails on the right and click for download.
For model Giradischi Ch= PE 3420, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1955 ?? Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Giradischi Ch= PE 3420 - Magnadyne Radio; Torino
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 310 x 205 x 115 mm / 12.2 x 8.1 x 4.5 inch
Notes

Giradischi a 3 velocità (33, 45, 78 giri) per installazione sui radiofonografi di Magnadyne e sue associate. Adattatore alle varie tensioni ottenuto con una resistenza multipla in serie al motore.

Stop automatico a fine disco. Trasmissione a cinghia.

Prodotto da PE per Magnadyne Radio, vedere la famiglia di modelli 3420 (ad esempio Phono-Koffer 3420PE)

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
