• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99100

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK1 58 2B7 2A5 80

• Main principle
• Superheterodyne (common); Reflex

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

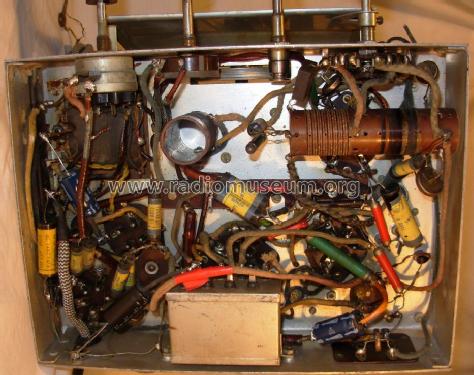

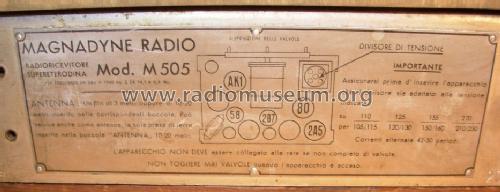

• Model: M505 Ch= 502 - Magnadyne Radio; Torino

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 395 x 430 x 250 mm / 15.6 x 16.9 x 9.8 inch

• Notes
• Mobile stile Impero impiallacciato in noce.

• Price in first year of sale
• 895.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999
