M70

M70; Magnadyne Radio; (ID = 804286) Radio

M70; Magnadyne Radio; (ID = 804287) Radio
M70; Magnadyne Radio; (ID = 302339) Radio M70; Magnadyne Radio; (ID = 302340) Radio
M70; Magnadyne Radio; (ID = 302341) Radio M70; Magnadyne Radio; (ID = 804276) Radio

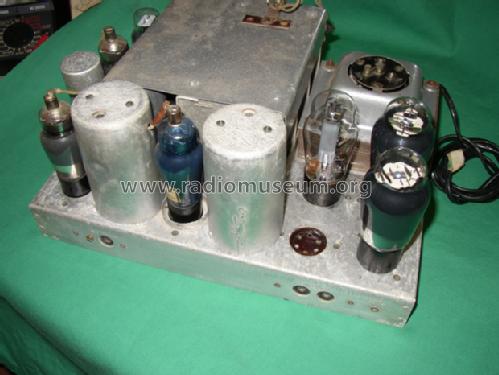

M70; Magnadyne Radio; (ID = 804277) Radio M70; Magnadyne Radio; (ID = 804278) Radio
M70; Magnadyne Radio; (ID = 804279) Radio
Use red slider bar for more.
M70; Magnadyne Radio; (ID = 302339) Radio
Magnadyne Radio;: M70 [Radio] ID = 302339 377x459
Select picture or schematic to display from thumbnails on the right and click for download.
For model M70, Magnadyne Radio; Torino:
Foto per cortesia di Antonio (venditore ebay: fravagnano)

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 58 57 58 2A5 47 47 80
Main principle Superhet with RF-stage
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: M70 - Magnadyne Radio; Torino
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Source of data Guida Pratica Antique Radio V (2003)
Mentioned in -- Collector info (Sammler)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
