M80

M80; Magnadyne Radio; (ID = 751821) Radio M80; Magnadyne Radio; (ID = 660302) Radio

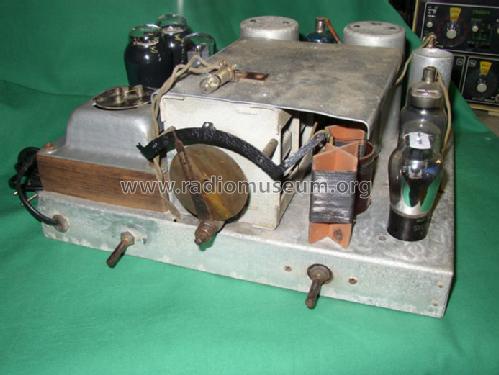

M80; Magnadyne Radio; (ID = 752427) Radio M80; Magnadyne Radio; (ID = 752428) Radio
M80; Magnadyne Radio; (ID = 752430) Radio M80; Magnadyne Radio; (ID = 752431) Radio
Use red slider bar for more.
M80; Magnadyne Radio; (ID = 751821) Radio
Magnadyne Radio;: M80 [Radio] ID = 751821 575x767
Select picture or schematic to display from thumbnails on the right and click for download.
For model M80, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8:
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: M80 - Magnadyne Radio; Torino
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Source of data Guida Pratica Antique Radio V (2003)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
