Radioson R518

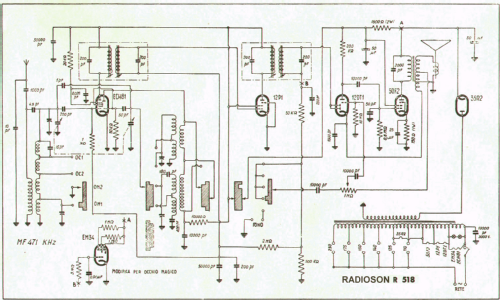

Radioson R518; Magnadyne Radio; (ID = 1191673) Radio
Radioson R518; Magnadyne Radio; (ID = 2057900) Radio Radioson R518; Magnadyne Radio; (ID = 2057905) Radio
Radioson R518; Magnadyne Radio; (ID = 2057901) Radio Radioson R518; Magnadyne Radio; (ID = 2057904) Radio
Radioson R518; Magnadyne Radio; (ID = 2057903) Radio Radioson R518; Magnadyne Radio; (ID = 1127035) Radio
Use red slider bar for more.
Radioson R518; Magnadyne Radio; (ID = 2057900) Radio
Magnadyne Radio;: Radioson R518 [Radio] ID = 2057900 1372x754
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radioson R518, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1956 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 12P1 12DT1 50F2 EM34 35R2
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Radioson R518 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 290 x 220 mm / 20.9 x 11.4 x 8.7 inch
Notes Gamme d'onda: 2 medie e 2 corte.

Model page created by Alessandro De Poi. See "Data change" for further contributors.
