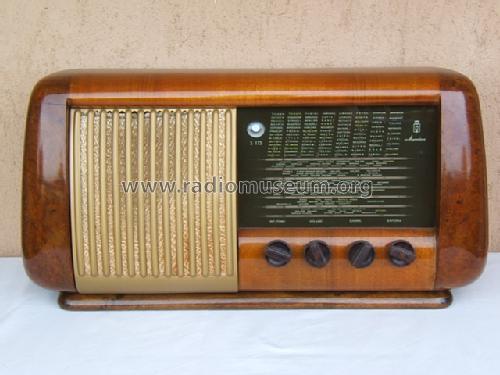

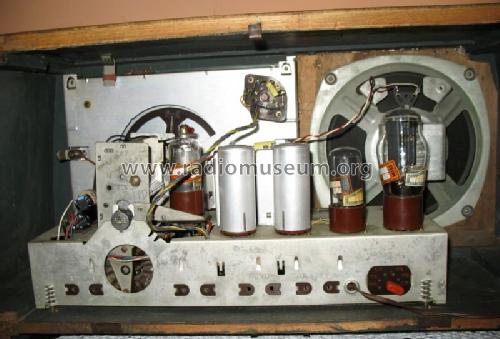

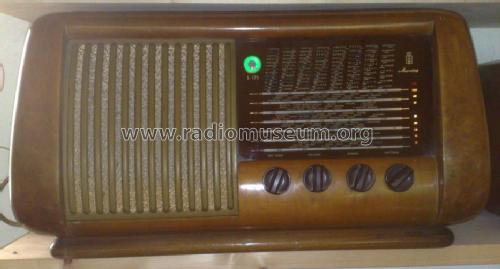

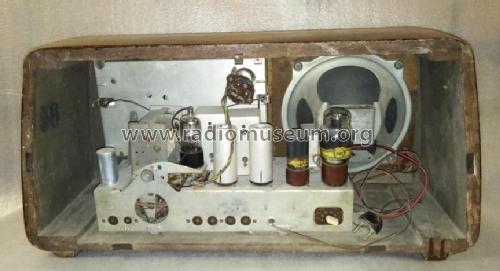

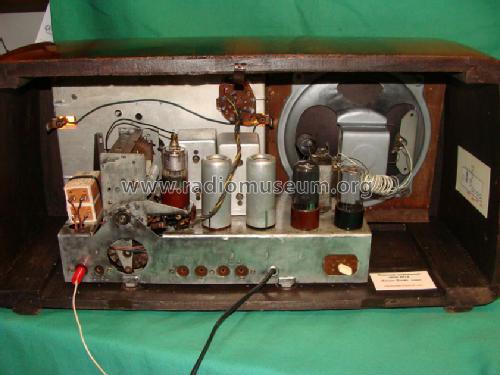

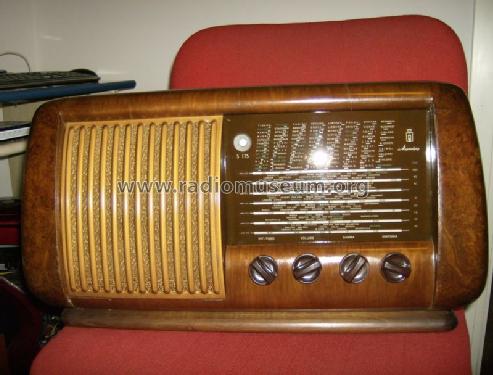

S175

• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88952

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6TE8 6SK7 6SQ7 6V6 6E5 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: S175 - Magnadyne Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 300 x 210 mm / 22.8 x 11.8 x 8.3 inch

• Notes

• 6 gamme d'onde corte: 49m, 41m, 31m, 25m, 19m, 16m.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• Collezione di Schemi, Scuola Radio Elettra 1953

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra (pag. M11)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
